Sandvik Coromant

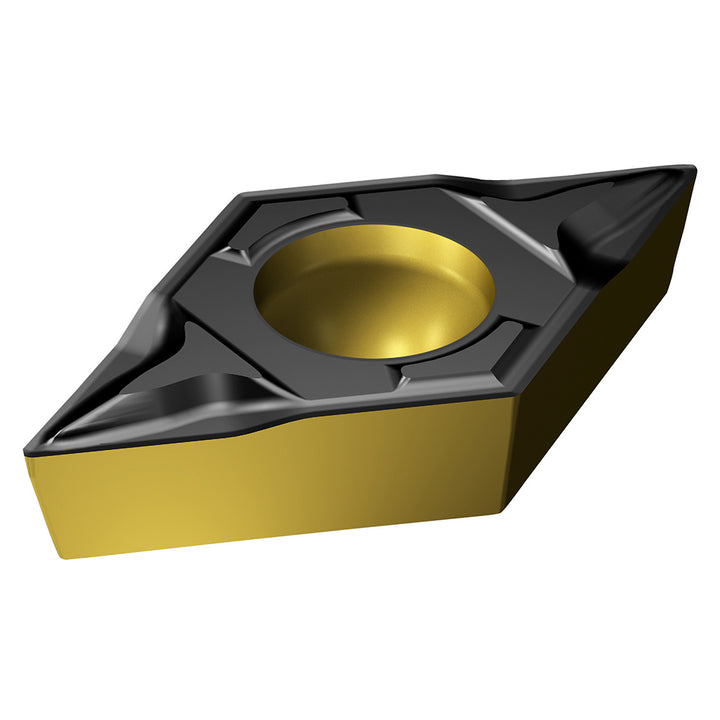

DCMT 11 T3 02-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861037
MFR# 7861037ISO/ANSI# DCMT 11 T3 02-PF 4425Cat# DCMT 3(2.5)0-PFSeries CoroTurn 107
$21.87List $28.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861037 is a DCMT 11 T3 02-PF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Industry standard numberDCMT 11 T3 02-PF 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code11T3
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 02-PF 4425
Manufacturers catalog numberDCMT 3(2.5)0-PF
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
