Sandvik Coromant

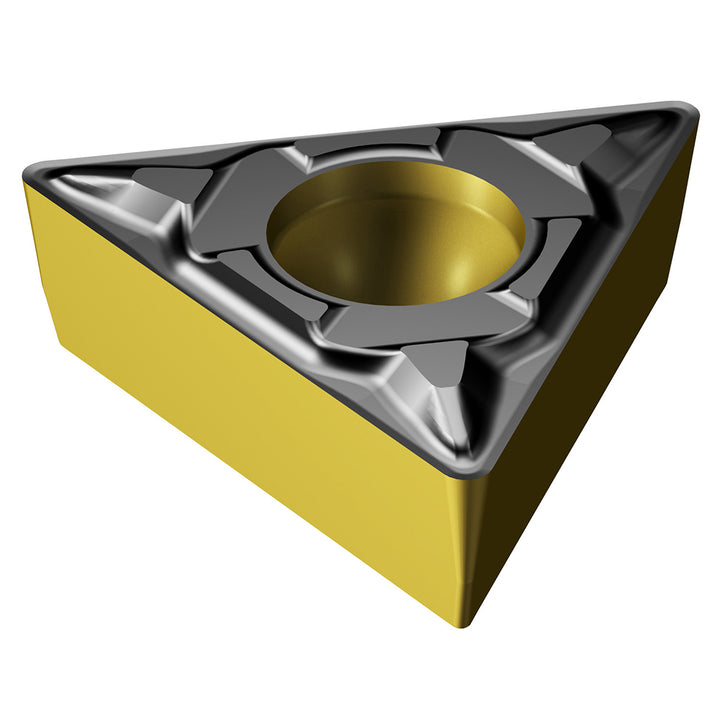

TCMT 06 T1 04-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861039
MFR# 7861039ISO/ANSI# TCMT 06 T1 04-PF 4425Cat# TCMT 1.2(1.2)1-PFSeries CoroTurn 107
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861039 is a TCMT 06 T1 04-PF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
ChipbreakerPF
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code06T1
Insert styleTCMT
Iso codeTCMT 06 T1 04-PF 4425
Manufacturers catalog numberTCMT 1.2(1.2)1-PF
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
