Sandvik Coromant

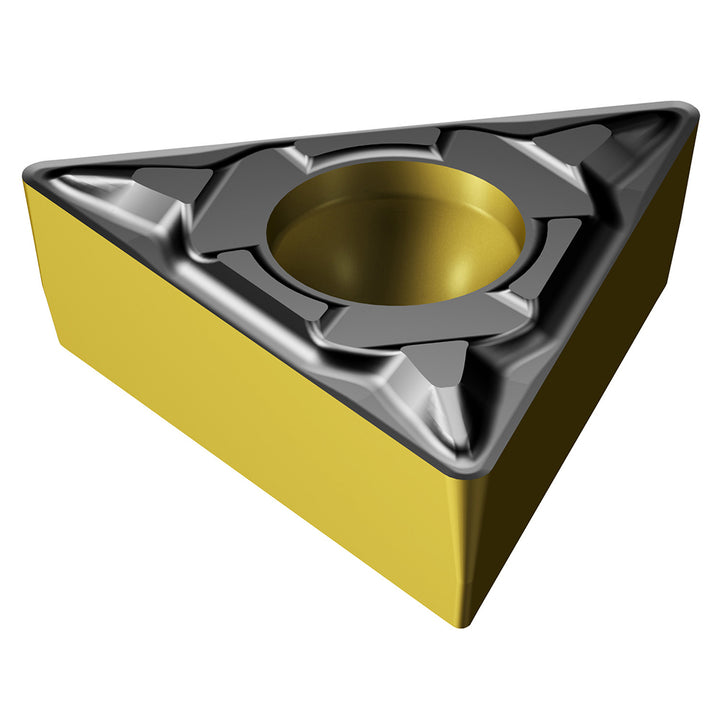

TCMT 11 03 02-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861043
MFR# 7861043ISO/ANSI# TCMT 11 03 02-PF 4425Cat# TCMT 220-PFSeries CoroTurn 107
$18.86List $24.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861043 is a TCMT 11 03 02-PF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle60
Industry standard numberTCMT 11 03 02-PF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 02-PF 4425
Manufacturers catalog numberTCMT 220-PF
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
