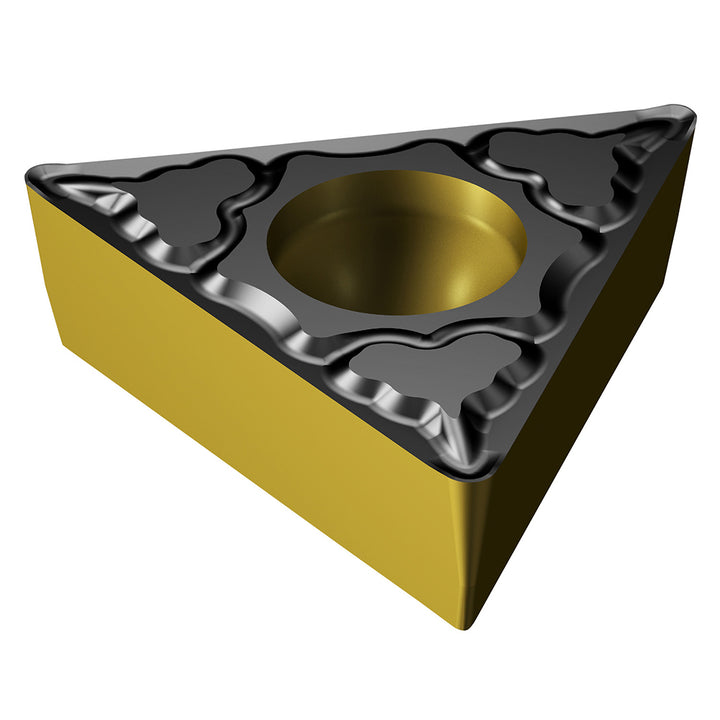

TCMT 09 02 04-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861064

Sandvik Coromant

TCMT 09 02 04-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861064

MFR# 7861064ISO/ANSI# TCMT090204Cat# TCMT 1.8(1.5)1-PMSeries CoroTurn 107

$14.57List $18.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC7/32
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861064 is a TCMT 09 02 04-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeTCMT1.81.51
Ansi size code1.81.51
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0984
Included angle60
Industry standard numberTCMT 09 02 04-PM 4425
Inscribed circle in7/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code0902
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-PM 4425
Iso insert codeTCMT090204
Iso size code090204
Manufacturers catalog numberTCMT 1.8(1.5)1-PM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
