Sandvik Coromant

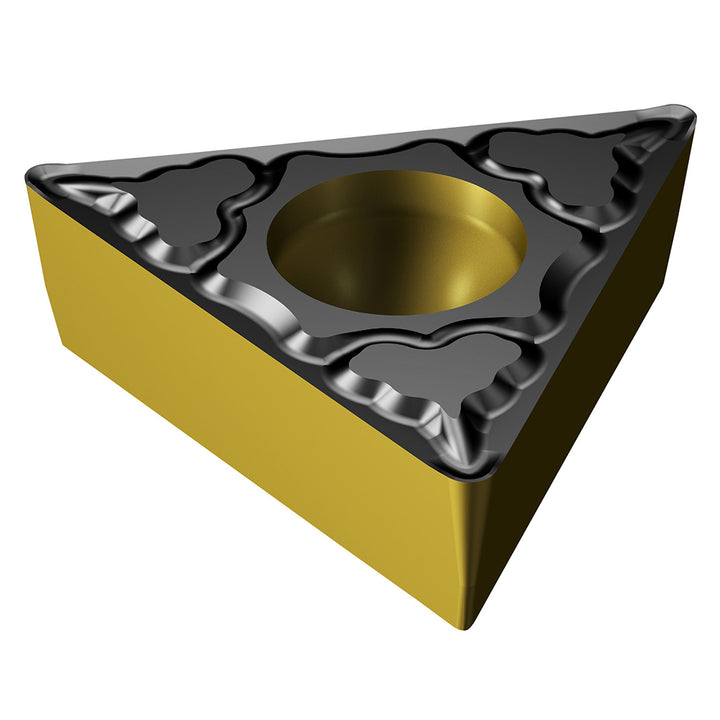

TCMT 09 02 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861065
MFR# 7861065ISO/ANSI# TCMT 09 02 08-PM 4425Cat# TCMT 1.8(1.5)2-PMSeries CoroTurn 107
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861065 is a TCMT 09 02 08-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.0984
Included angle60
Industry standard numberTCMT 09 02 08-PM 4425
Inscribed circle in7/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code0902
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 08-PM 4425
Manufacturers catalog numberTCMT 1.8(1.5)2-PM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
