Sandvik Coromant
TCMT 11 03 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861067
MFR# 7861067ISO/ANSI# TCMT 11 03 08-PM 4425Cat# TCMT 222-PMSeries CoroTurn 107
$16.06List $20.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description

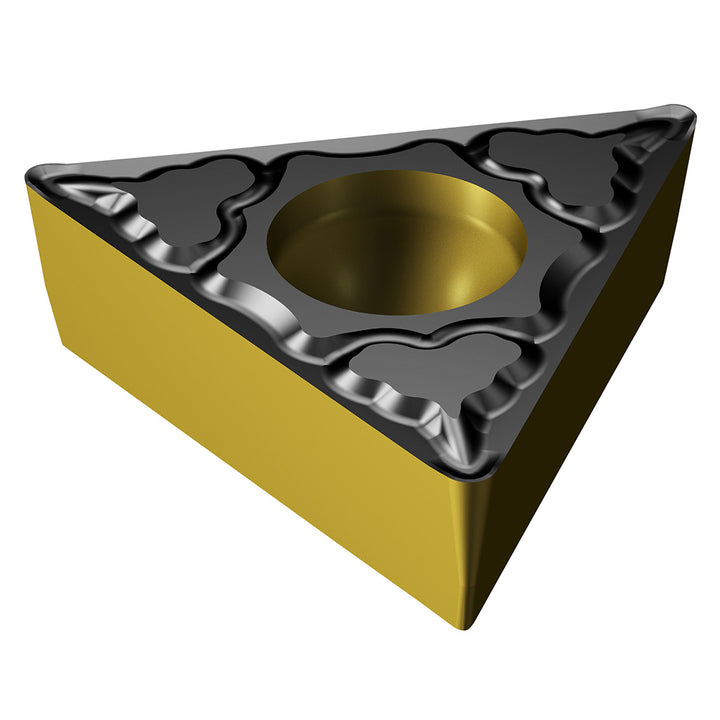

The Sandvik Coromant 7861067 is a TCMT 11 03 08-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Industry standard numberTCMT 11 03 08-PM 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 08-PM 4425
Manufacturers catalog numberTCMT 222-PM
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
