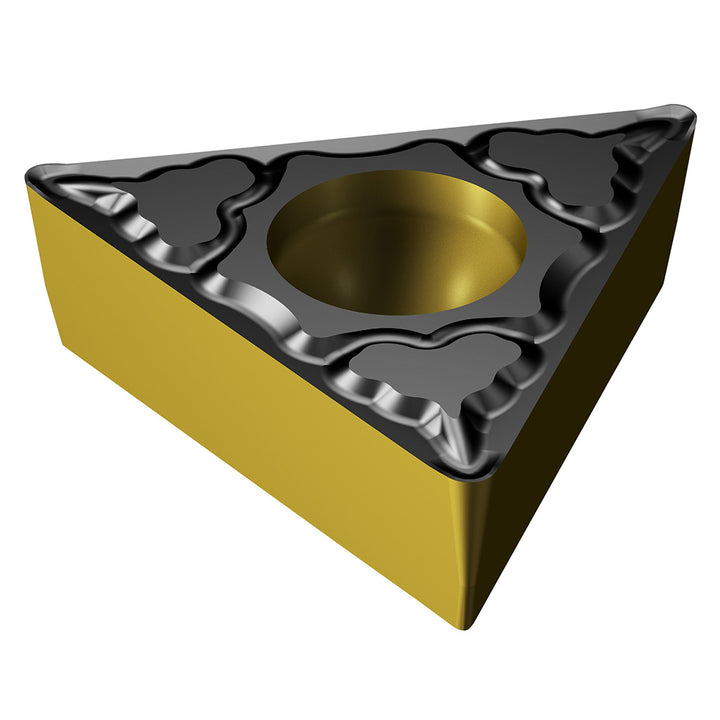

TCMT 11 03 12-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861068
MFR# 7861068ISO/ANSI# TCMT 11 03 12-PM 4425Cat# TCMT 223-PMSeries CoroTurn 107
$17.35List $22.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861068 is a TCMT 11 03 12-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTCMT 11 03 12-PM 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code110312
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 12-PM 4425
Manufacturers catalog numberTCMT 223-PM
Manufacturer grade4425
Relief angle7
Tolerance codeM
