Sandvik Coromant

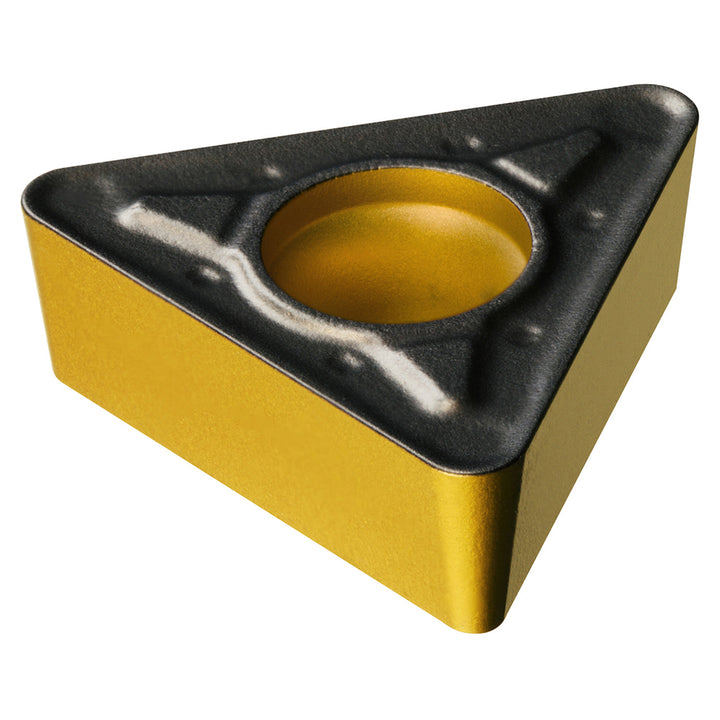

TCMT 16 T3 08-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861079
MFR# 7861079ISO/ANSI# TCMT 16 T3 08-PR 4425Cat# TCMT 3(2.5)2-PRSeries CoroTurn 107
$21.90List $28.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861079 is a TCMT 16 T3 08-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Industry standard numberTCMT 16 T3 08-PR 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code16T3
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-PR 4425
Manufacturers catalog numberTCMT 3(2.5)2-PR
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
