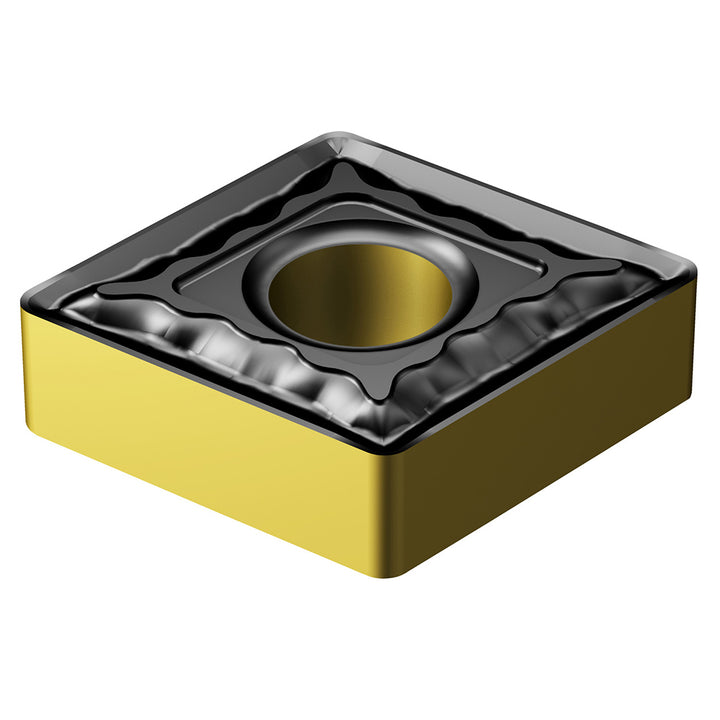

CNMG 19 06 04-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861083
MFR# 7861083ISO/ANSI# CNMG 19 06 04-QM 4425Cat# CNMG 641-QMSeries T-Max P
$45.72List $58.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861083 is a CNMG 19 06 04-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.3120
Included angle80
Industry standard numberCNMG 19 06 04-QM 4425
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 04-QM 4425
Manufacturers catalog numberCNMG 641-QM
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
