Sandvik Coromant

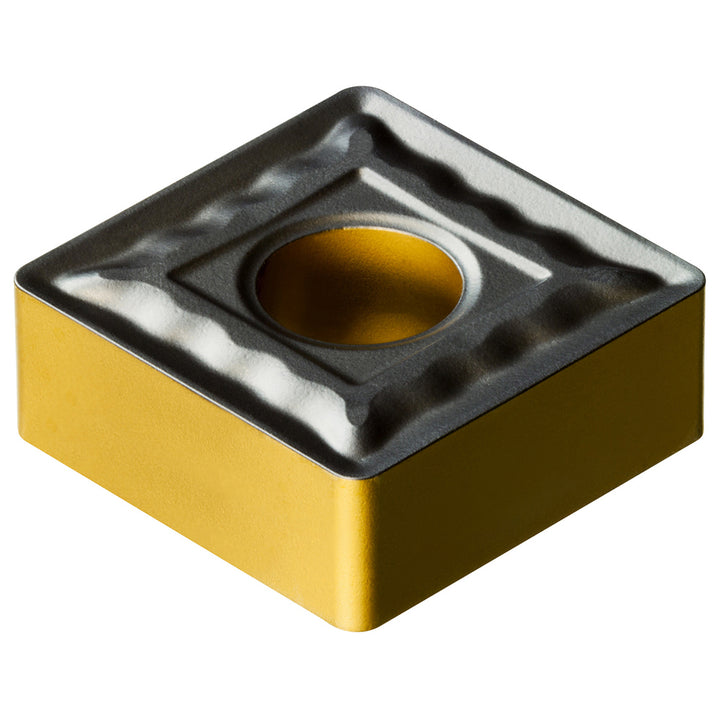

SNMG 12 04 04-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861087
MFR# 7861087ISO/ANSI# SNMG 12 04 04-QM 4425Cat# SNMG 431-QMSeries T-Max P
$19.38List $24.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861087 is a SNMG 12 04 04-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Industry standard numberSNMG 12 04 04-QM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeRound
Insert size code120404
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 04-QM 4425
Manufacturers catalog numberSNMG 431-QM
Manufacturer grade4425
Relief angle0
Tolerance codeM
