Sandvik Coromant
SNMG 15 06 08-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861089
MFR# 7861089ISO/ANSI# SNMG150608Cat# SNMG 542-QMSeries T-Max P
$32.71List $41.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
Grade4425
MaterialCarbide
CoatingAl2O3
Description

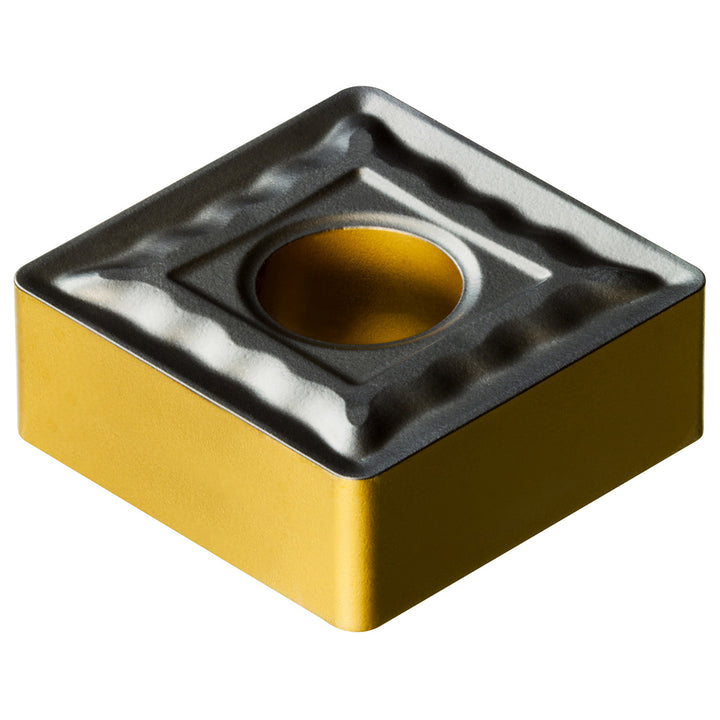

The Sandvik Coromant 7861089 is a SNMG 15 06 08-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Ansi insert codeSNMG542
Ansi size code542
Chip breakerQM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Industry standard numberSNMG 15 06 08-QM 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeS - Square
Insert size code150608
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 08-QM 4425
Iso insert codeSNMG150608
Iso size code150608
Manufacturers catalog numberSNMG 542-QM
Manufacturer grade4425
Relief angle0
Side clearanceNegative
Tolerance codeM
