Sandvik Coromant

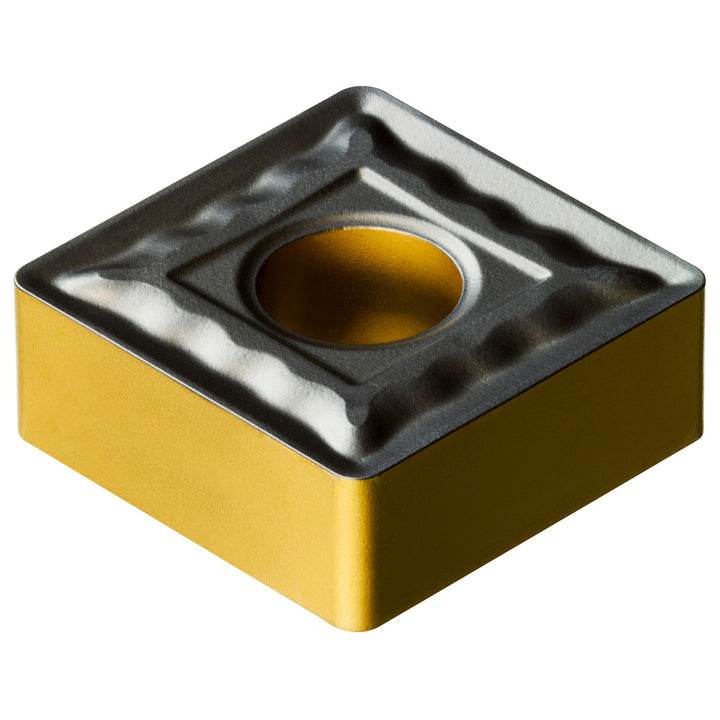

SNMG 15 06 12-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861090
MFR# 7861090ISO/ANSI# SNMG 15 06 12-QM 4425Cat# SNMG 543-QMSeries T-Max P
$30.30List $38.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861090 is a SNMG 15 06 12-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.2500
Industry standard numberSNMG 15 06 12-QM 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1506
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 12-QM 4425
Manufacturers catalog numberSNMG 543-QM
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
