Sandvik Coromant

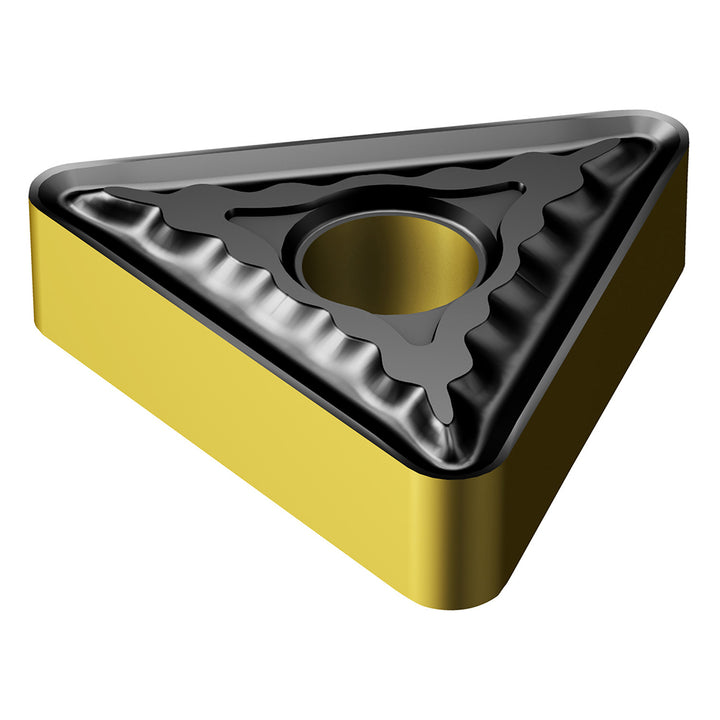

TNMG 11 03 08-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861095
MFR# 7861095ISO/ANSI# TNMG110308QM4425Cat# TNMG222QMSeries T-Max P
$10.10List $12.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861095 is a TNMG 11 03 08-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.0890
Included angle60
Industry standard numberTNMG110308QM4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 11 03 08-QM 4425
Manufacturers catalog numberTNMG222QM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
