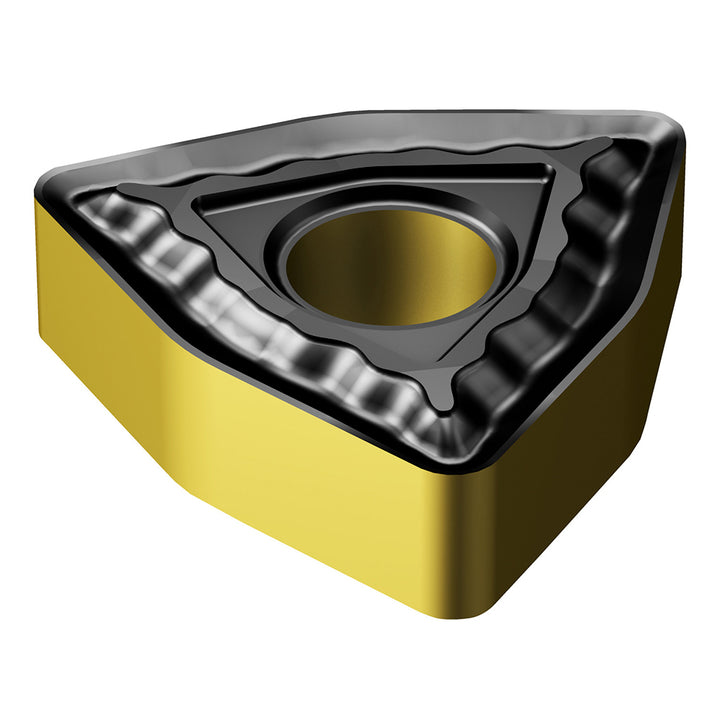

WNMG 08 04 08-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861104

Sandvik Coromant

WNMG 08 04 08-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861104

MFR# 7861104ISO/ANSI# WNMG080402Cat# WNMG 432-QMSeries T-Max P

$22.74List $29.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861104 is a WNMG 08 04 08-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerQM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Industry standard numberWNMG 08 04 08-QM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-QM 4425
Iso insert codeWNMG080402
Iso size code080402
Manufacturers catalog numberWNMG 432-QM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
