Sandvik Coromant

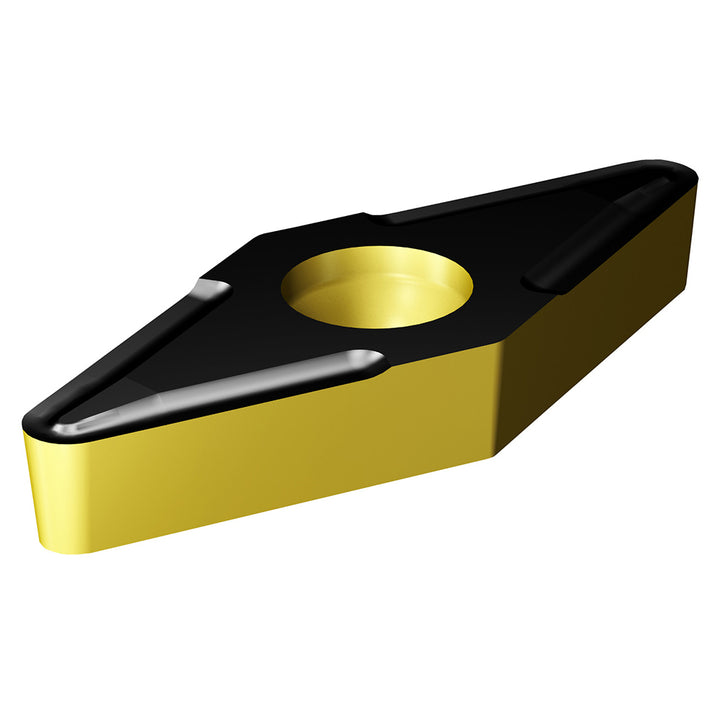

VBMT 11 02 02-UF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861115
MFR# 7861115ISO/ANSI# VBMT 11 02 02-UF 4425Cat# VBMT 2(1.5)0-UFSeries CoroTurn 107
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861115 is a VBMT 11 02 02-UF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle35
Industry standard numberVBMT 11 02 02-UF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1102
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 02-UF 4425
Manufacturers catalog numberVBMT 2(1.5)0-UF
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
