Sandvik Coromant
WNMG 08 04 08-WL 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861145
MFR# 7861145ISO/ANSI# WNMG 08 04 08-WL 4425Cat# WNMG 432-WLSeries T-Max P
$23.75List $30.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description

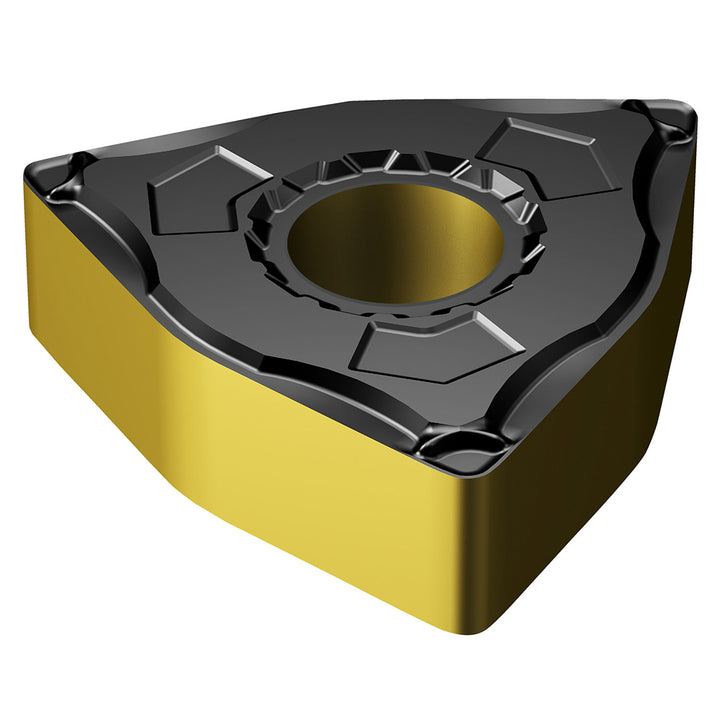

The Sandvik Coromant 7861145 is a WNMG 08 04 08-WL 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle80
Industry standard numberWNMG 08 04 08-WL 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code080408
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-WL 4425
Manufacturers catalog numberWNMG 432-WL
Manufacturer grade4425
Relief angle0
Tolerance codeM
