Sandvik Coromant

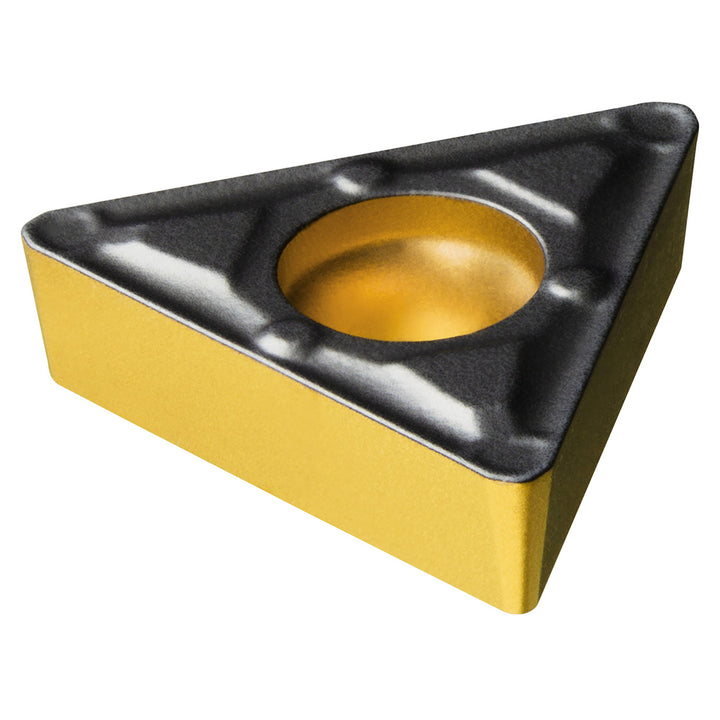

TCMX 16 T3 08-WF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861209
MFR# 7861209ISO/ANSI# TCMX 16 T3 08-WF 4425Cat# TCMX 3(2.5)2-WFSeries CoroTurn 107
$25.17List $32.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861209 is a TCMX 16 T3 08-WF 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle60
Industry standard numberTCMX 16 T3 08-WF 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code16T308
Insert styleTCMX
Insert thickness in5/32
Iso codeTCMX 16 T3 08-WF 4425
Manufacturers catalog numberTCMX 3(2.5)2-WF
Manufacturer grade4425
Relief angle7
Tolerance codeM
