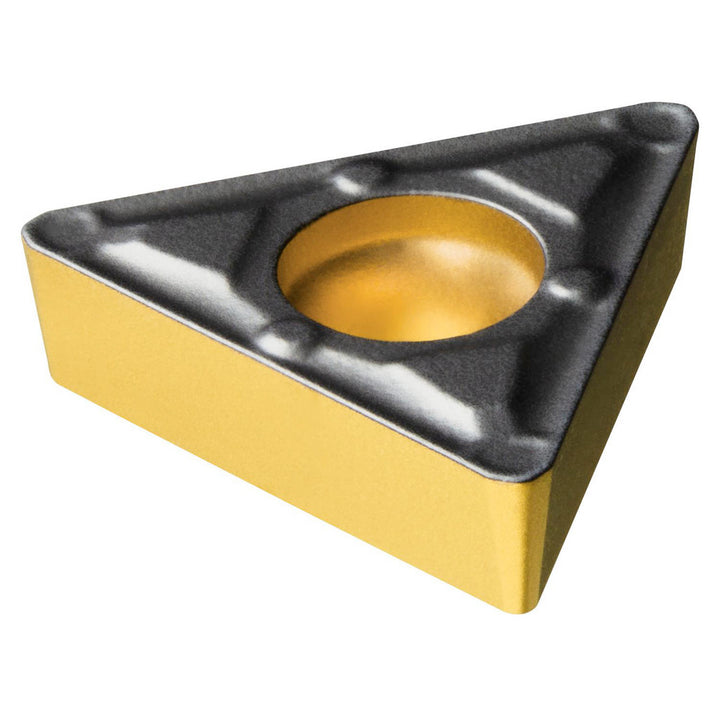

TCMX 11 03 04-WF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861211

Sandvik Coromant

TCMX 11 03 04-WF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861211

MFR# 7861211ISO/ANSI# TCMX110304Cat# TCMX 221-WFSeries CoroTurn 107

$18.52List $23.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7861211 is a TCMX 11 03 04-WF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeTCMX221
Ansi size code221
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Industry standard numberTCMX 11 03 04-WF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1103
Insert styleTCMX
Insert thickness in1/8
Iso codeTCMX 11 03 04-WF 4425
Iso insert codeTCMX110304
Iso size code110304
Manufacturers catalog numberTCMX 221-WF
Manufacturer grade4425
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeYes
