Sandvik Coromant

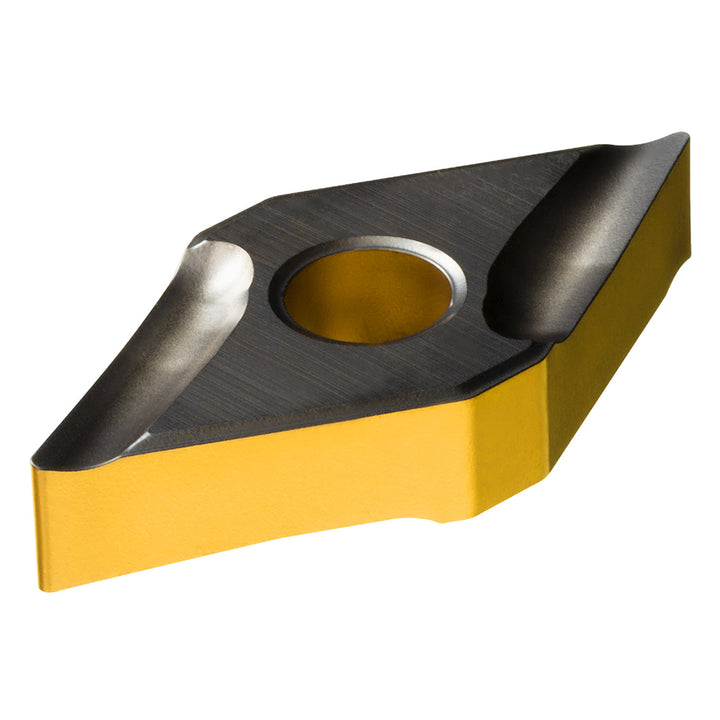

DNMG 15 04 08R-K 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861216
MFR# 7861216ISO/ANSI# DNMG 15 04 08R-K 4425Cat# DNMG 432R-KSeries T-Max P
$26.10List $33.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861216 is a DNMG 15 04 08R-K 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerK
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Industry standard numberDNMG 15 04 08R-K 4425
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1504
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08R-K 4425
Manufacturers catalog numberDNMG 432R-K
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
