Sandvik Coromant
WNMG 06 04 08-LC 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861223
MFR# 7861223ISO/ANSI# WNMG 06 04 08-LC 4425Cat# WNMG 332-LCSeries T-Max P
$18.15List $23.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description

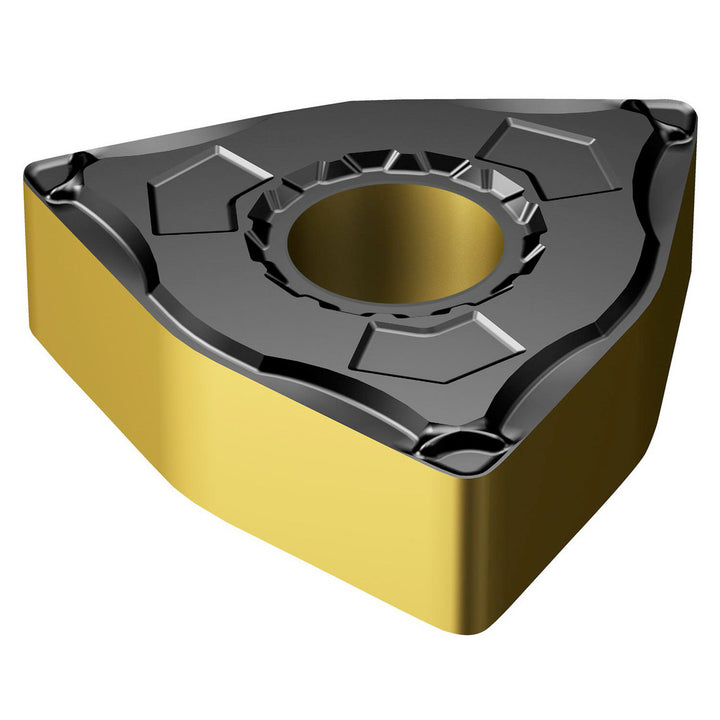

The Sandvik Coromant 7861223 is a WNMG 06 04 08-LC 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerLC
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Hole diameter0.1500
Included angle80
Industry standard numberWNMG 06 04 08-LC 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-LC 4425
Manufacturers catalog numberWNMG 332-LC
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
