Sandvik Coromant

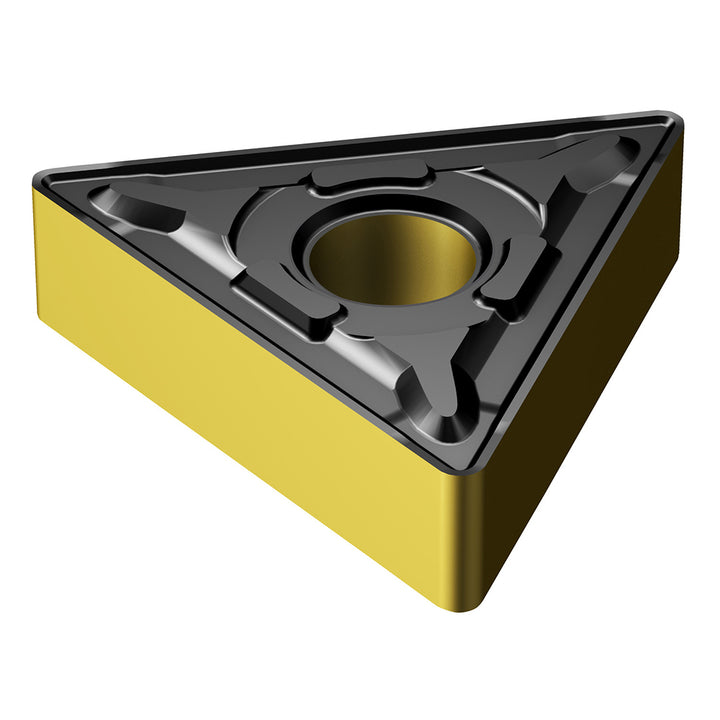

TNMG 22 04 12-PR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861234
MFR# 7861234ISO/ANSI# TNMG 22 04 12-PR 4425Cat# TNMG 433-PRSeries T-Max P
$20.89List $26.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861234 is a TNMG 22 04 12-PR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle60
Industry standard numberTNMG 22 04 12-PR 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code220412
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 12-PR 4425
Manufacturers catalog numberTNMG 433-PR
Manufacturer grade4425
Relief angle0
Tolerance codeM
