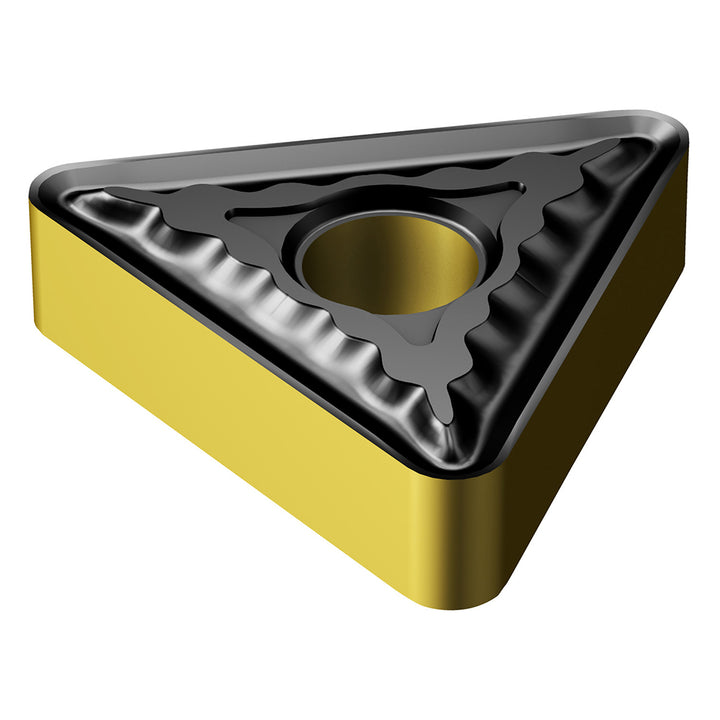

TNMG 22 04 16-QM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861242
MFR# 7861242ISO/ANSI# TNMG 22 04 16-QM 4425Cat# TNMG 434-QMSeries T-Max P
$24.88List $31.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861242 is a TNMG 22 04 16-QM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Included angle60
Industry standard numberTNMG 22 04 16-QM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code220416
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 16-QM 4425
Manufacturers catalog numberTNMG 434-QM
Manufacturer grade4425
Relief angle0
Tolerance codeM
