Sandvik Coromant
SNMM 12 04 16-QR 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861249
MFR# 7861249ISO/ANSI# SNMM 12 04 16-QR 4425Cat# SNMM 434-QRSeries T-Max P
$19.38List $24.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description

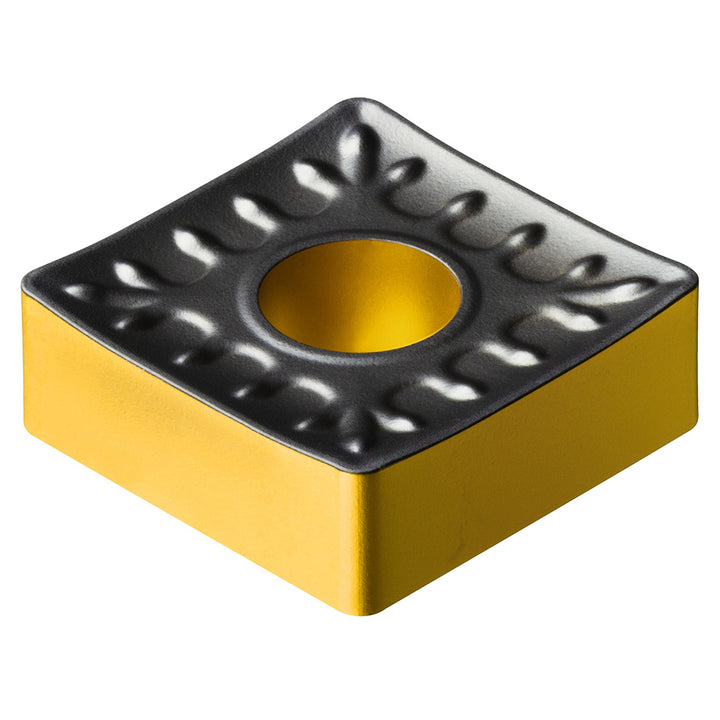

The Sandvik Coromant 7861249 is a SNMM 12 04 16-QR 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Industry standard numberSNMM 12 04 16-QR 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code120416
Insert styleSNMM
Insert thickness in3/16
Iso codeSNMM 12 04 16-QR 4425
Manufacturers catalog numberSNMM 434-QR
Manufacturer grade4425
Relief angle0
Tolerance codeM
