Sandvik Coromant

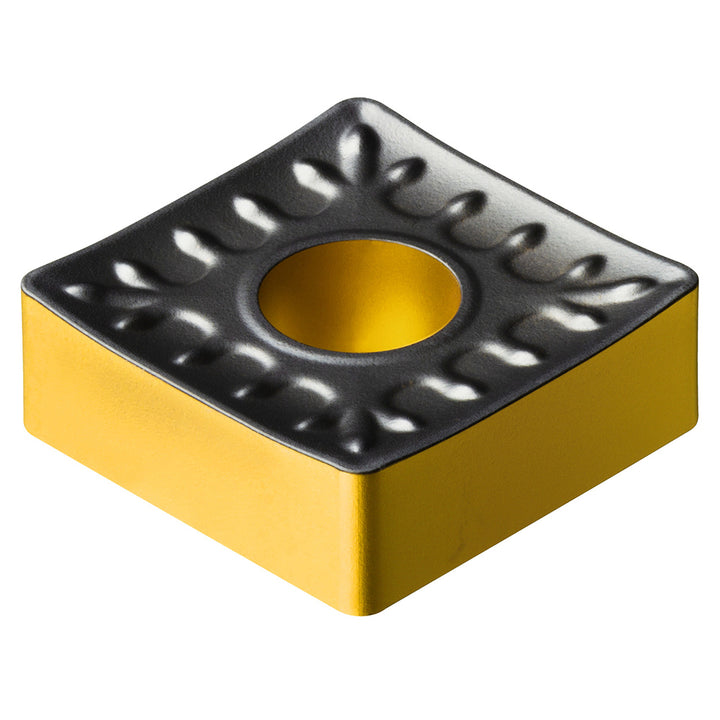

SNMM 25 07 24-QR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7861255
MFR# 7861255ISO/ANSI# SNMM 25 07 24-QR 4425Cat# SNMM 25 07 24-QR 4425Series SNMM-QR
$82.18List $105.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7861255 is a SNMM 25 07 24-QR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerQR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0938
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code2507
Insert styleSNMM
Insert thickness in5/16
Iso codeSNMM 25 07 24-QR 4425
Manufacturers catalog numberSNMM 25 07 24-QR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Tolerance codeM
