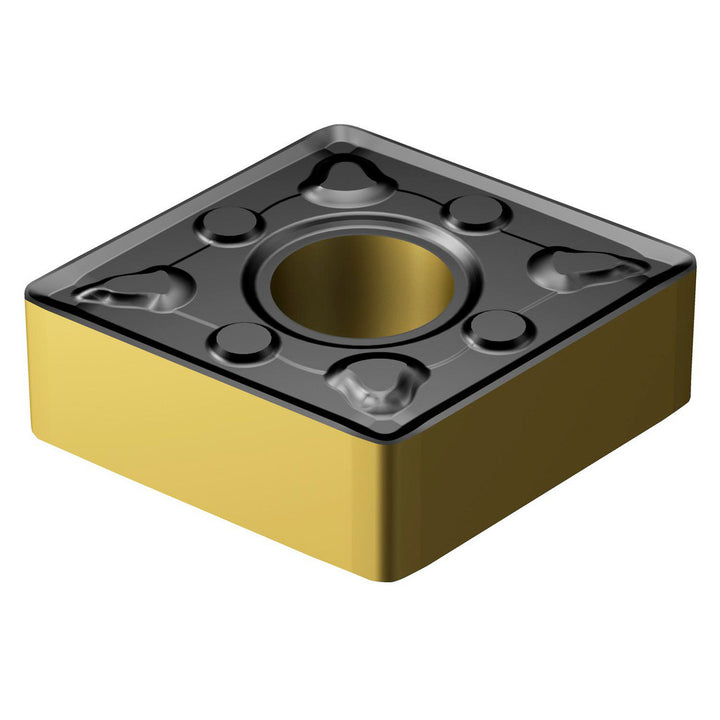

CNMG 16 06 08-WM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861266
MFR# 7861266ISO/ANSI# CNMG 16 06 08-WM 4425Cat# CNMG 542-WMSeries T-Max P
$35.37List $45.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861266 is a CNMG 16 06 08-WM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Hole diameter0.2500
Included angle80
Industry standard numberCNMG 16 06 08-WM 4425
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 08-WM 4425
Manufacturers catalog numberCNMG 542-WM
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
