Sandvik Coromant

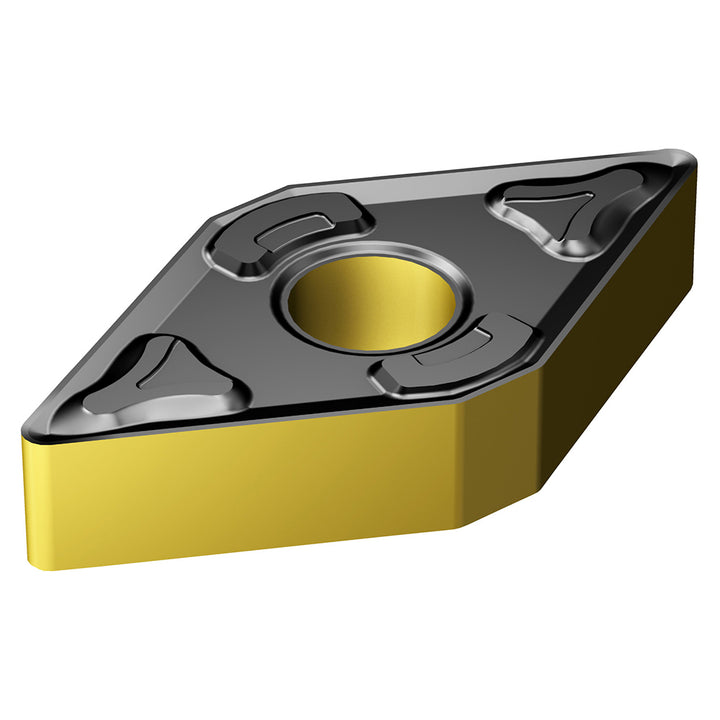

DNMG 15 06 04-XM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861278
MFR# 7861278ISO/ANSI# DNMG 15 06 04-XM 4425Cat# DNMG 441-XMSeries T-Max P
$28.46List $36.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861278 is a DNMG 15 06 04-XM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle55
Industry standard numberDNMG 15 06 04-XM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code150604
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 04-XM 4425
Manufacturers catalog numberDNMG 441-XM
Manufacturer grade4425
Relief angle0
Tolerance codeM
