Sandvik Coromant

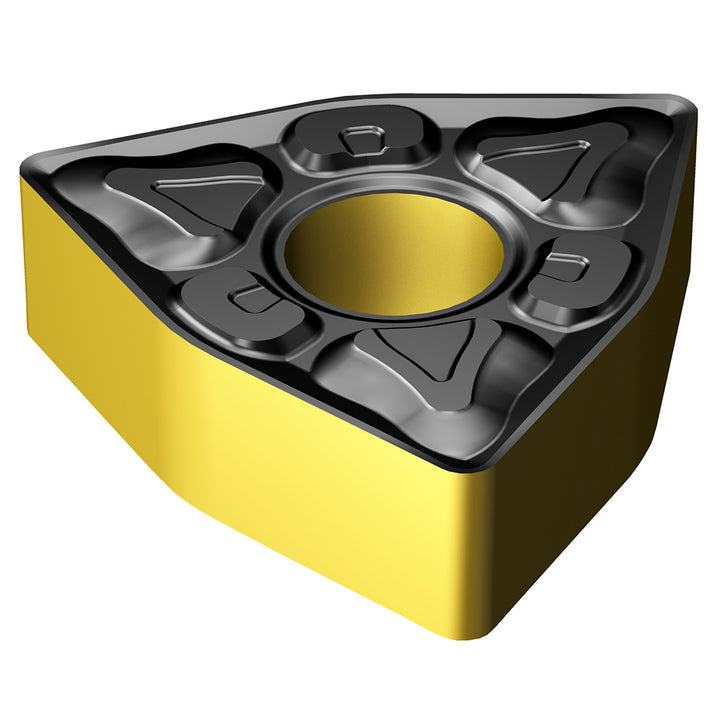

WNMG 08 04 12-XM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861290
MFR# 7861290ISO/ANSI# WNMG 08 04 12-XM 4425Cat# WNMG 433-XMSeries T-Max P
$20.54List $26.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861290 is a WNMG 08 04 12-XM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberWNMG 08 04 12-XM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code080412
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-XM 4425
Manufacturers catalog numberWNMG 433-XM
Manufacturer grade4425
Relief angle0
Tolerance codeM
