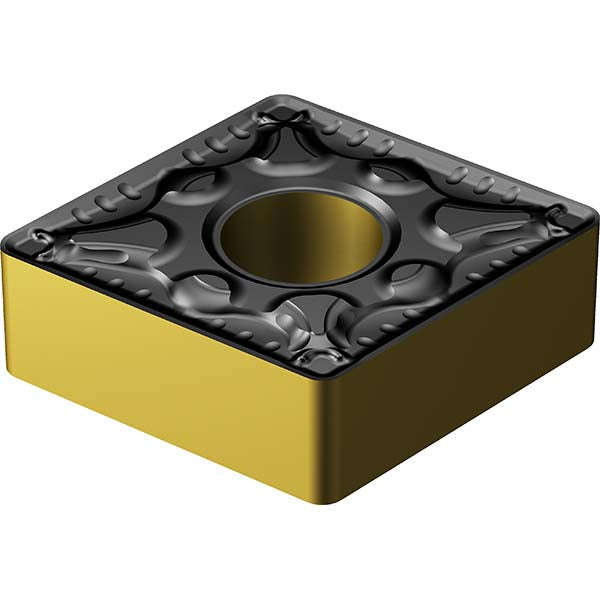

CNMG 12 04 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7884351

Sandvik Coromant

CNMG 12 04 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7884351

MFR# 7884351ISO/ANSI# CNMG120408Cat# CNMG 432-PM 4425Series T-Max P

$19.14List $24.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7884351 is a CNMG 12 04 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-PM 4425
Iso insert codeCNMG120408
Iso size code120408
Manufacturers catalog numberCNMG 432-PM 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
