Sandvik Coromant

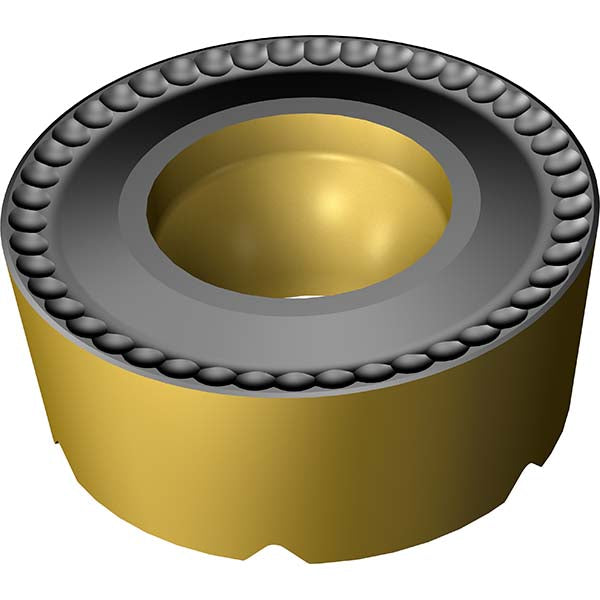

RCMT 12 04 MP-H7 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7960648
MFR# 7960648ISO/ANSI# RCMT 12 04 MP-H7 4425Cat# RCMT 12 04 MP-H7 4425Series CoroTurn 107
$20.97List $26.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7960648 is a RCMT 12 04 MP-H7 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Inscribed circle0.4724
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeRound
Insert size code1204
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 MP-H7 4425
Manufacturers catalog numberRCMT 12 04 MP-H7 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
