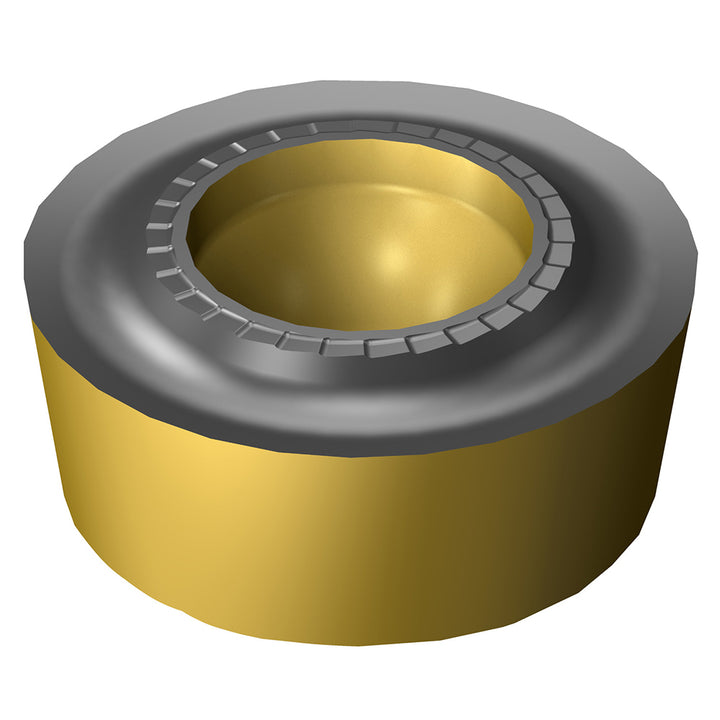

RCMT 06 03 00-SM S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003567
MFR# 8003567ISO/ANSI# RCMT 06 03 00-SM S205Cat# RCMT 06 03 00-SM S205Series CoroTurn 107
$12.75List $16.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003567 is a RCMT 06 03 00-SM S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/8
Inscribed circle in1/4
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code0603
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT 06 03 00-SM S205
Manufacturers catalog numberRCMT 06 03 00-SM S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
