Sandvik Coromant

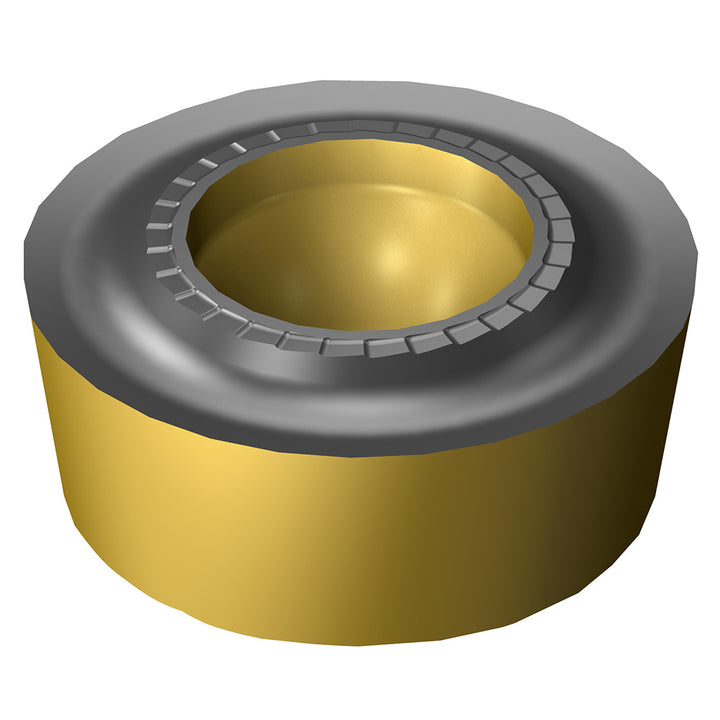

RCMT 09 T3 00-SM S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003572
MFR# 8003572ISO/ANSI# RCMT 09 T3 00-SM S205Cat# RCMT 09 T3 00-SM S205Series CoroTurn 107
$14.85List $19.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003572 is a RCMT 09 T3 00-SM S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeRound
Insert size code09T3
Insert styleRCMT
Insert thickness0.1563
Iso codeRCMT 09 T3 00-SM S205
Manufacturers catalog numberRCMT 09 T3 00-SM S205
Manufacturer gradeS205
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
