Sandvik Coromant

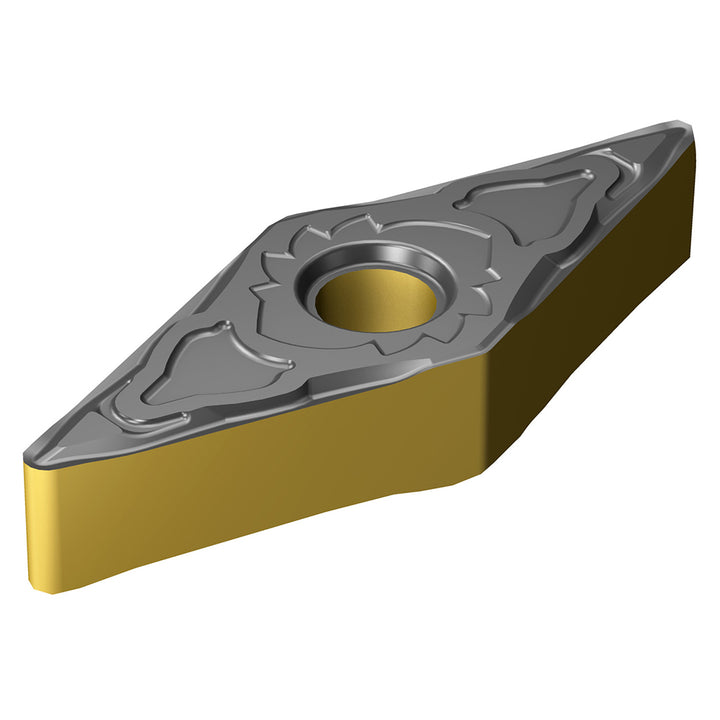

VNMG 16 04 04-SF S205 Carbide Insert, Grade S205, Al2O3 - Sandvik Coromant 8003591
MFR# 8003591ISO/ANSI# VNMG 16 04 04-SF S205Cat# VNMG331-SFSeries T-Max P
$38.35List $49.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeS205
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 8003591 is a VNMG 16 04 04-SF S205 carbide indexable insert, grade S205, Al2O3 coated. Suited for superalloy, titanium.
Specifications
Chip breakerSF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle35
Industry standard numberVNMG 16 04 04-SF S205
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1604
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-SF S205
Manufacturers catalog numberVNMG331-SF
Manufacturer gradeS205
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle0
Tolerance codeM
Wiper edgeNo
