Sandvik Coromant

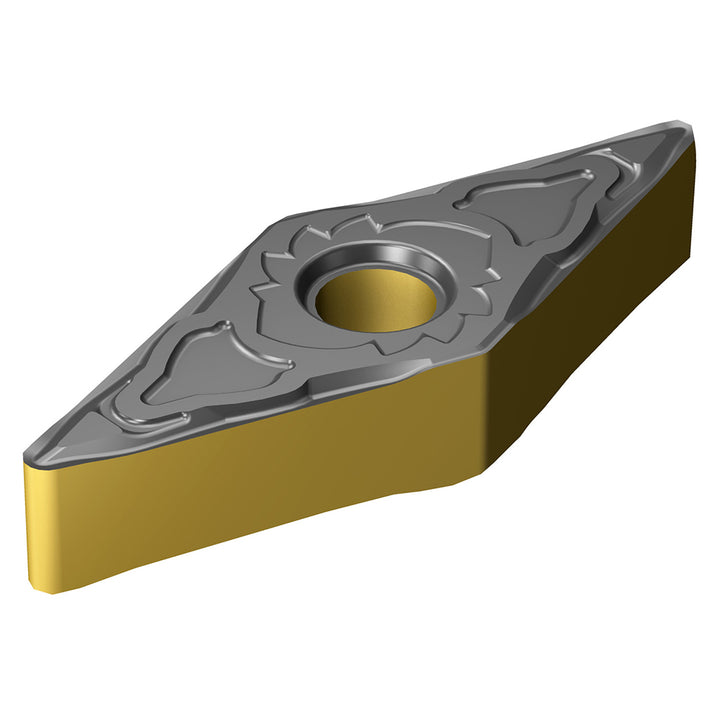

VNMG 16 04 08-SF S205 Carbide Insert, Grade S205, Al2O3 - Sandvik Coromant 8003592
MFR# 8003592ISO/ANSI# VNMG 16 04 08-SF S205Cat# VNMG332-SFSeries T-Max P
$38.35List $49.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeS205
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 8003592 is a VNMG 16 04 08-SF S205 carbide indexable insert, grade S205, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle35
Industry standard numberVNMG 16 04 08-SF S205
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code160408
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-SF S205
Manufacturers catalog numberVNMG332-SF
Manufacturer gradeS205
Relief angle0
Tolerance codeM
