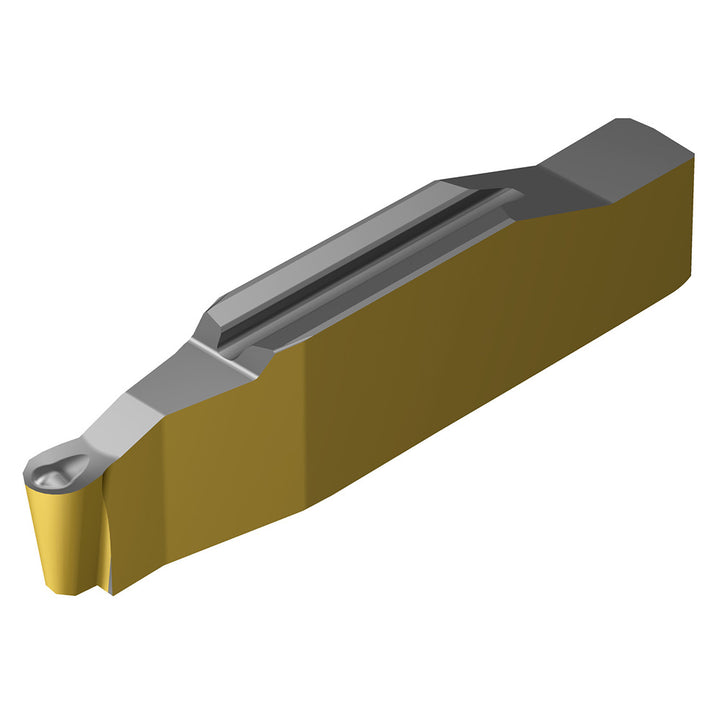

N123H1-0150-RO S205 Carbide Insert, Grade S205, TiCN - Sandvik Coromant 8003661
MFR# 8003661ISO/ANSI# N123H1-0150-RO S205Series CoroCut 1-2
$37.64List $48.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeS205
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8003661 is a N123H1-0150-RO S205 carbide indexable insert, grade S205, TiCN coated. Suited for superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerRO
Coating finishTiCN
Coating processCVD
Corner radius0.0296
Hole diameter0.0000
Included angle360
Inscribed circle0.0591
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code0150
Insert styleN123H1
Iso codeN123H1-0150-RO S205
Manufacturer gradeS205
Material gradeS15
Maximum depth of cut0.0197
Msc manufacturer numberN123H1-0150-RO S205
Number of cutting edges1
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle10
Relief angle7
ShapeRectangle
StandardsN123H1-0150-RO S205; N123H1-0150-RO S205
Width0.0591
