Sandvik Coromant

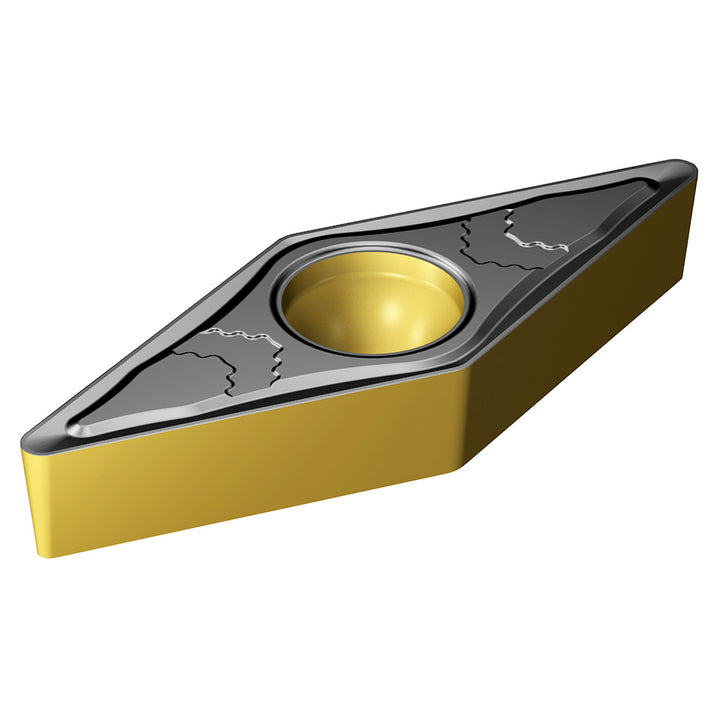

VBMT 16 04 04-PMC 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019349
MFR# 8019349ISO/ANSI# VBMT 16 04 04-PMC 4425Cat# VBMT160404PMC4425Series VBMT-PMC
$26.02List $33.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019349 is a VBMT 16 04 04-PMC 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPMC
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-PMC 4425
Manufacturers catalog numberVBMT160404PMC4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle5
Tolerance codeM
