Sandvik Coromant

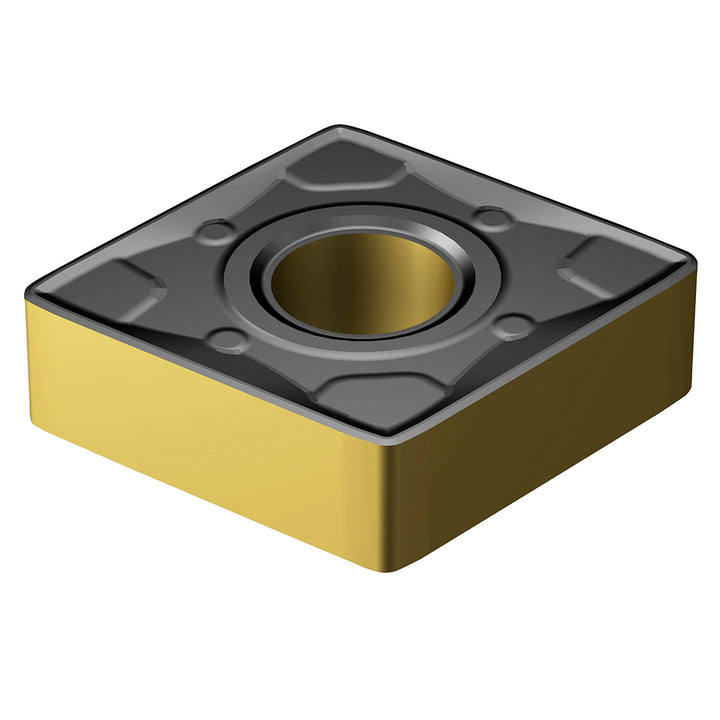

CNMM 19 06 16-WR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019473
MFR# 8019473ISO/ANSI# CNMM 19 06 16-WR 4425Cat# CNMM 19 06 16-WR 4425Series CNMM-WR
$52.86List $67.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019473 is a CNMM 19 06 16-WR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerWR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1906
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 19 06 16-WR 4425
Manufacturers catalog numberCNMM 19 06 16-WR 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
