Sandvik Coromant

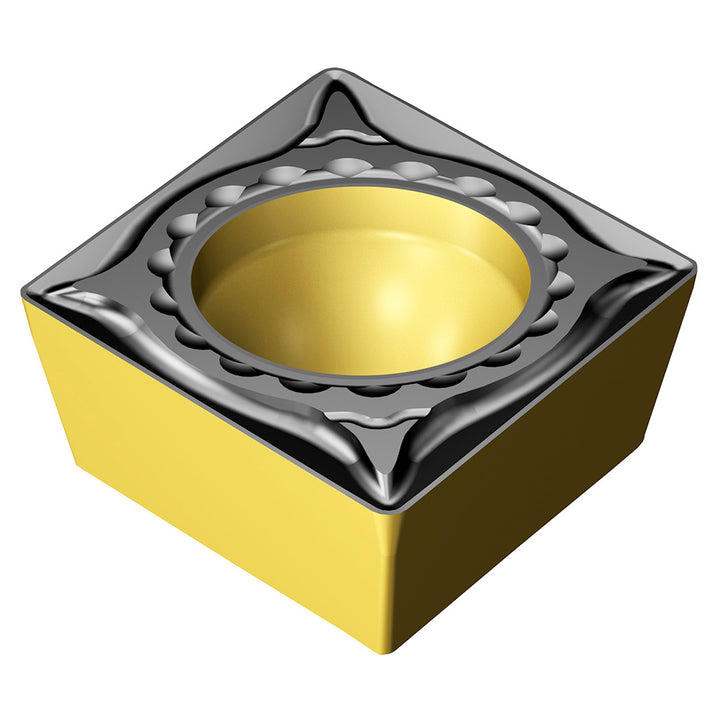

CPMT 06 02 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019499
MFR# 8019499ISO/ANSI# CPMT 06 02 08-PM 4425Cat# CPMT 06 02 08-PM 4425Series CPMT-PM
$15.91List $20.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019499 is a CPMT 06 02 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code21.52
Insert styleCPMT
Insert thickness0.0938
Iso codeCPMT 06 02 08-PM 4425
Manufacturers catalog numberCPMT 06 02 08-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
