Sandvik Coromant

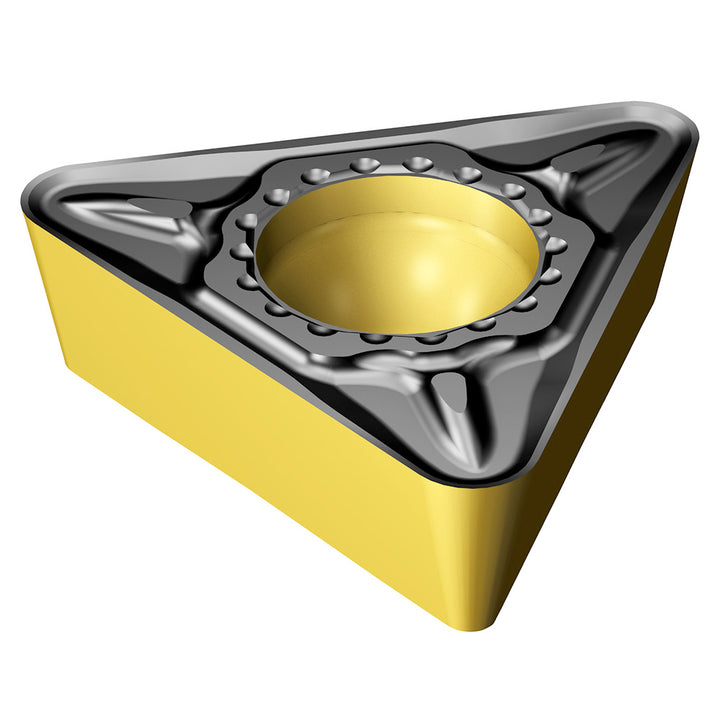

TPMT 09 02 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019507
MFR# 8019507ISO/ANSI# TPMT 09 02 08-PM 4425Cat# TPMT 09 02 08-PM 4425Series TPMT-PM
$15.33List $19.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019507 is a TPMT 09 02 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle0.2188
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1.81.5
Insert styleTPMT
Insert thickness0.0938
Iso codeTPMT 09 02 08-PM 4425
Manufacturers catalog numberTPMT 09 02 08-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
