Sandvik Coromant

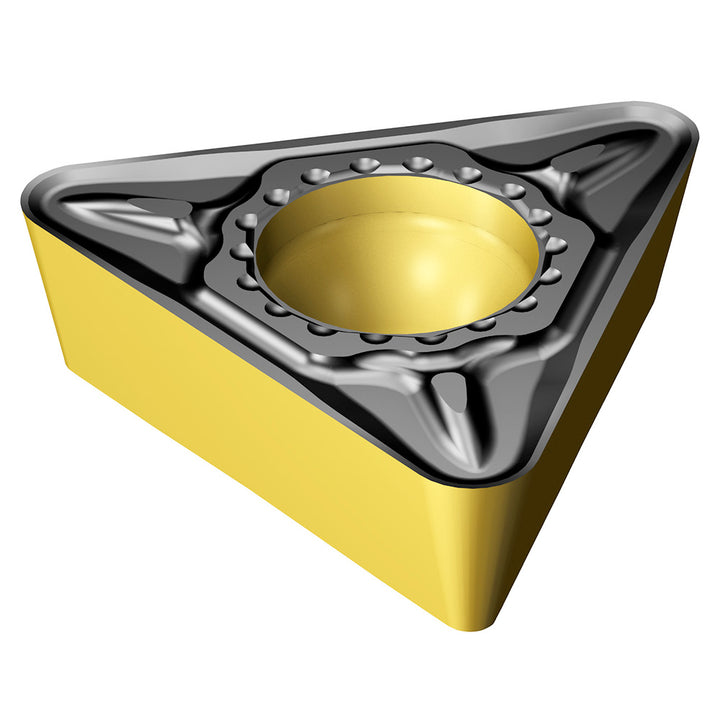

TPMT 11 03 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019509
MFR# 8019509ISO/ANSI# TPMT 11 03 08-PM 4425Cat# TPMT 11 03 08-PM 4425Series TPMT-PM
$16.59List $21.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019509 is a TPMT 11 03 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code222
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT 11 03 08-PM 4425
Manufacturers catalog numberTPMT 11 03 08-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
