Sandvik Coromant

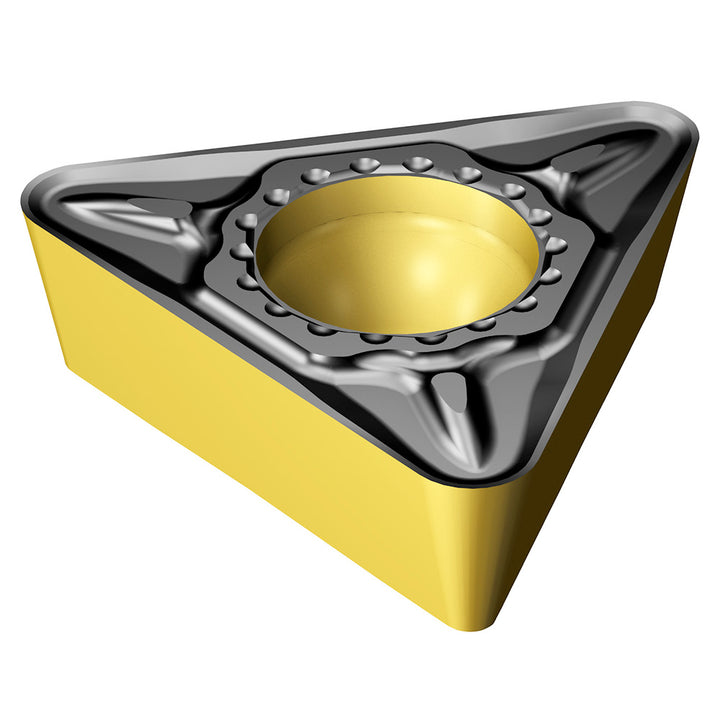

TPMT 16 T3 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019511
MFR# 8019511ISO/ANSI# TPMT 16 T3 08-PM 4425Cat# TPMT 16 T3 08-PM 4425Series TPMT-PM
$22.95List $29.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019511 is a TPMT 16 T3 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code16T3
Insert styleTPMT
Insert thickness0.1563
Iso codeTPMT 16 T3 08-PM 4425
Manufacturers catalog numberTPMT 16 T3 08-PM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
