Sandvik Coromant

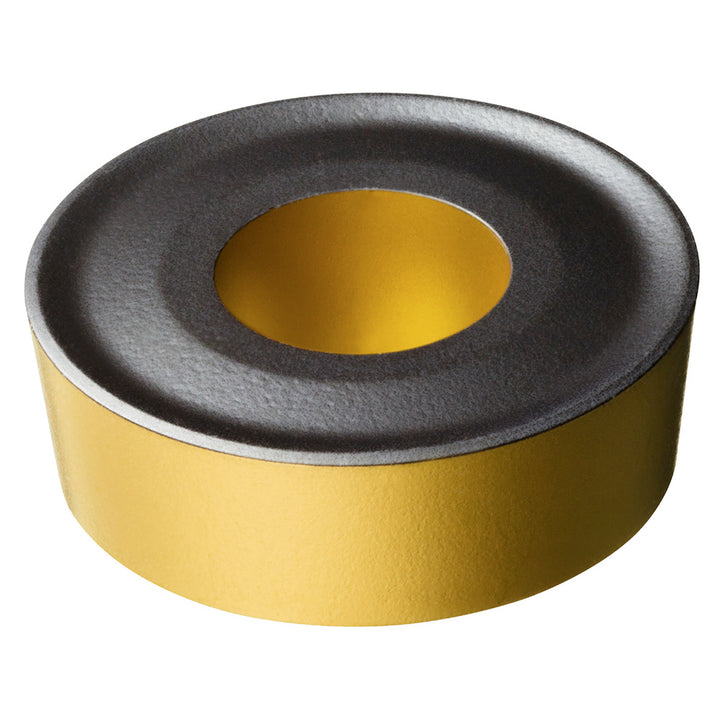

RCMX 12 04 00 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019523
MFR# 8019523ISO/ANSI# RCMX 12 04 00 4425Cat# RCMX 12 04 00 4425Series RCMX
$17.05List $21.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019523 is a RCMX 12 04 00 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Inscribed circle0.4724
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1204
Insert styleRCMX
Insert thickness in3/16
Iso codeRCMX 12 04 00 4425
Manufacturers catalog numberRCMX 12 04 00 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
