Sandvik Coromant

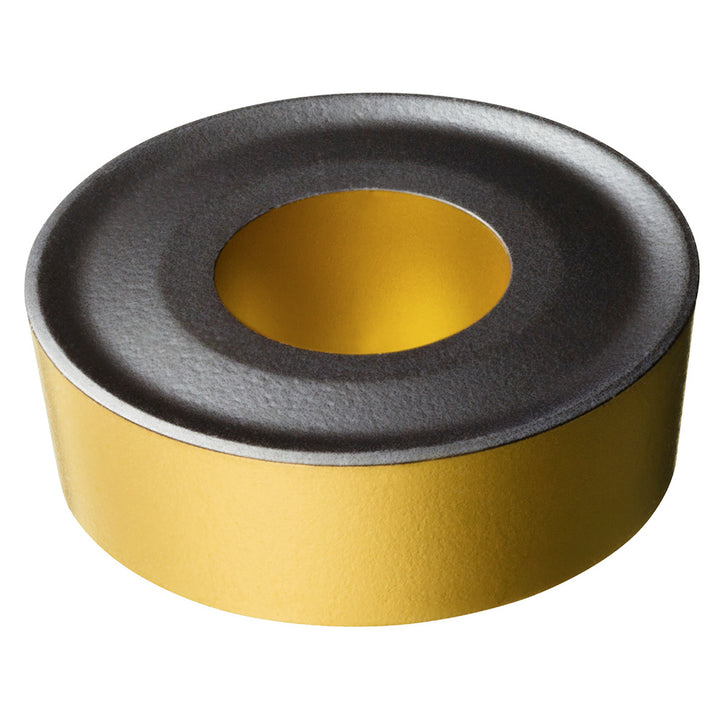

RCMX 20 06 00 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019525
MFR# 8019525ISO/ANSI# RCMX 20 06 00 4425Cat# RCMX 20 06 00 4425Series RCMX
$41.64List $53.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019525 is a RCMX 20 06 00 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.3937
Inscribed circle0.7874
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code2006
Insert styleRCMX
Insert thickness in1/4
Iso codeRCMX 20 06 00 4425
Manufacturers catalog numberRCMX 20 06 00 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
