Sandvik Coromant

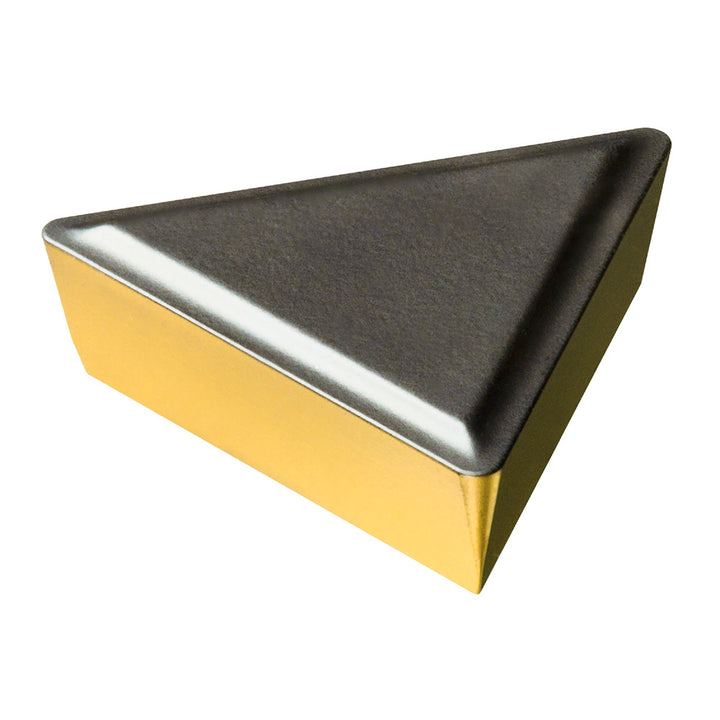

TPMR 11 03 08 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019556
MFR# 8019556ISO/ANSI# TPMR 11 03 08 4425Cat# TPMR 11 03 08 4425Series TPMR
$13.02List $16.69
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019556 is a TPMR 11 03 08 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code222
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR 11 03 08 4425
Manufacturers catalog numberTPMR 11 03 08 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
