Sandvik Coromant

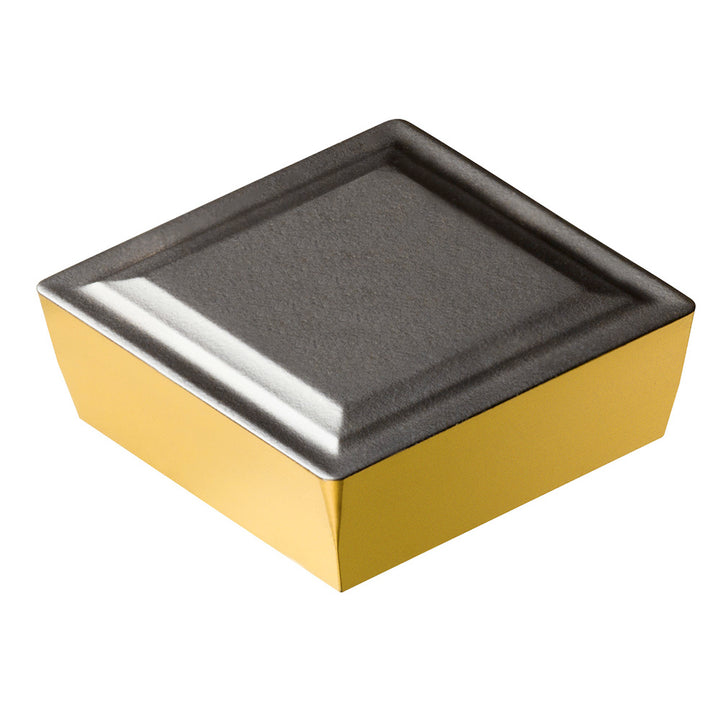

SPMR 12 03 12 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019559
MFR# 8019559ISO/ANSI# SPMR 12 03 12 4425Cat# SPMR 12 03 12 4425Series SPMR
$21.42List $27.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019559 is a SPMR 12 03 12 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breaker53
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size code423
Insert styleSPMR
Insert thickness in1/8
Iso codeSPMR 12 03 12 4425
Manufacturers catalog numberSPMR 12 03 12 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle11
Tolerance codeM
