Sandvik Coromant

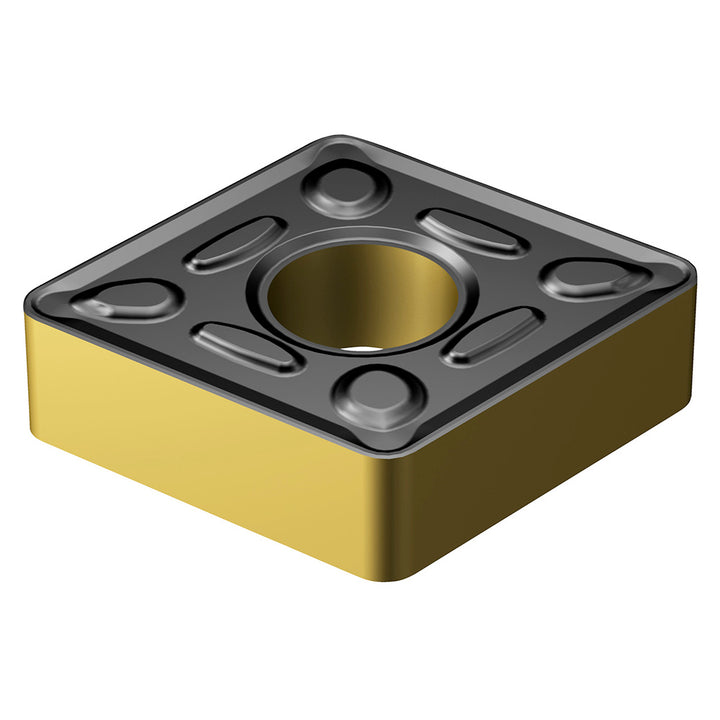

CNMG 16 06 12-HM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019576
MFR# 8019576ISO/ANSI# CNMG 16 06 12-HM 4425Series CNMG
$30.30List $38.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019576 is a CNMG 16 06 12-HM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerHM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-HM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
