Sandvik Coromant

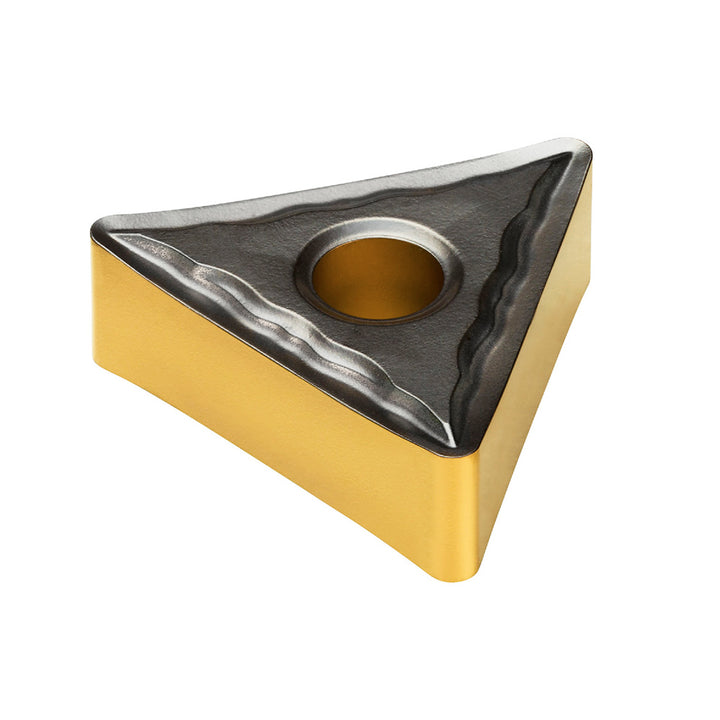

TNMG 11 03 08-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019616
MFR# 8019616ISO/ANSI# TNMG 11 03 08-MF 4425Cat# TNMG 11 03 08-MF 4425Series T-Max P
$11.23List $14.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019616 is a TNMG 11 03 08-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 11 03 08-MF 4425
Manufacturers catalog numberTNMG 11 03 08-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
