Sandvik Coromant

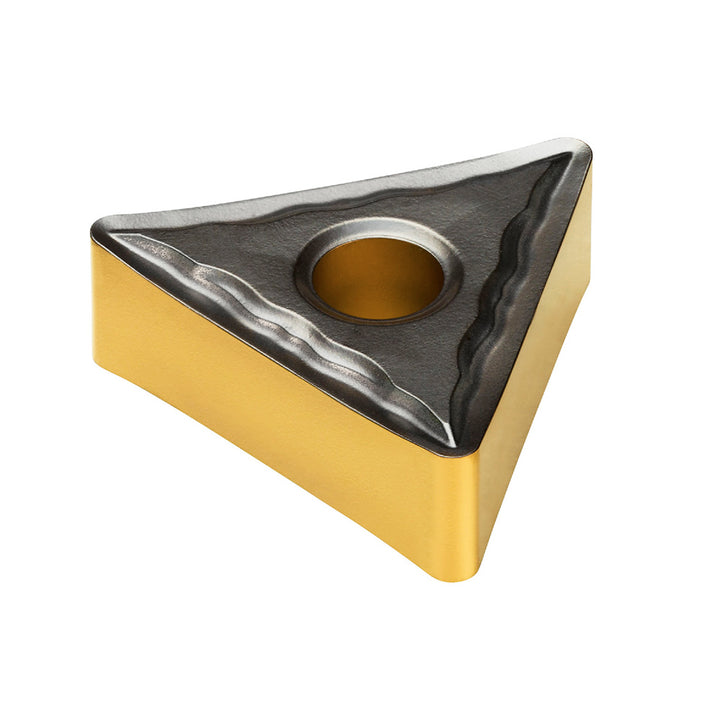

TNMG 22 04 08-MF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019623
MFR# 8019623ISO/ANSI# TNMG 22 04 08-MF 4425Cat# TNMG 22 04 08-MF 4425Series T-Max P
$24.88List $31.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019623 is a TNMG 22 04 08-MF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-MF 4425
Manufacturers catalog numberTNMG 22 04 08-MF 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
