Sandvik Coromant

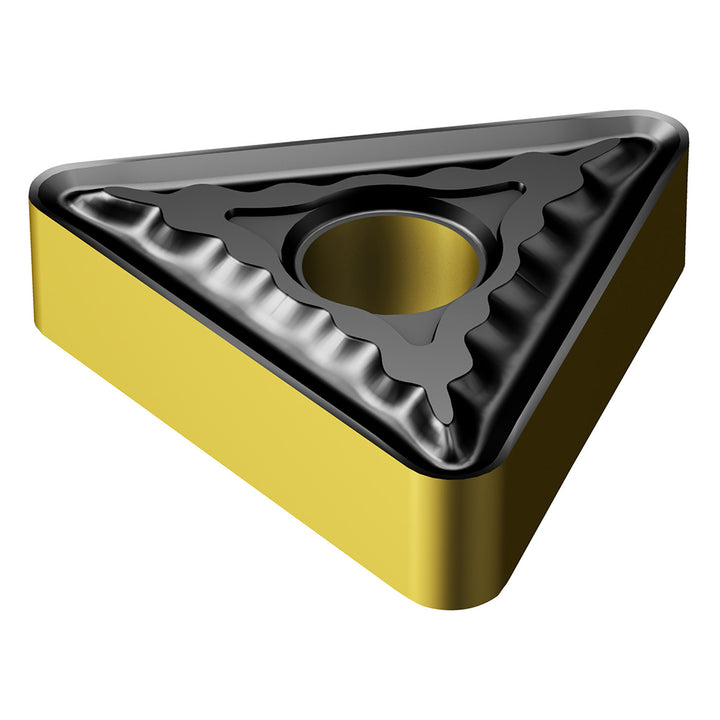

TNMG 27 06 08-QM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019690
MFR# 8019690ISO/ANSI# TNMG270608Cat# TNMG 27 06 08-QM 4425Series TNMG-QM
$42.86List $54.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeT - Triangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 8019690 is a TNMG 27 06 08-QM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG542
Ansi size code542
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle0.6250
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2706
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG 27 06 08-QM 4425
Iso insert codeTNMG270608
Iso size code270608
Manufacturers catalog numberTNMG 27 06 08-QM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
