Sandvik Coromant
SNMG 12 04 12-XM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 8019711
MFR# 8019711ISO/ANSI# SNMG120412Cat# SNMG 12 04 12-XM 4425Series SNMG-XM
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
Grade4425
MaterialCarbide
CoatingTiCN
Description

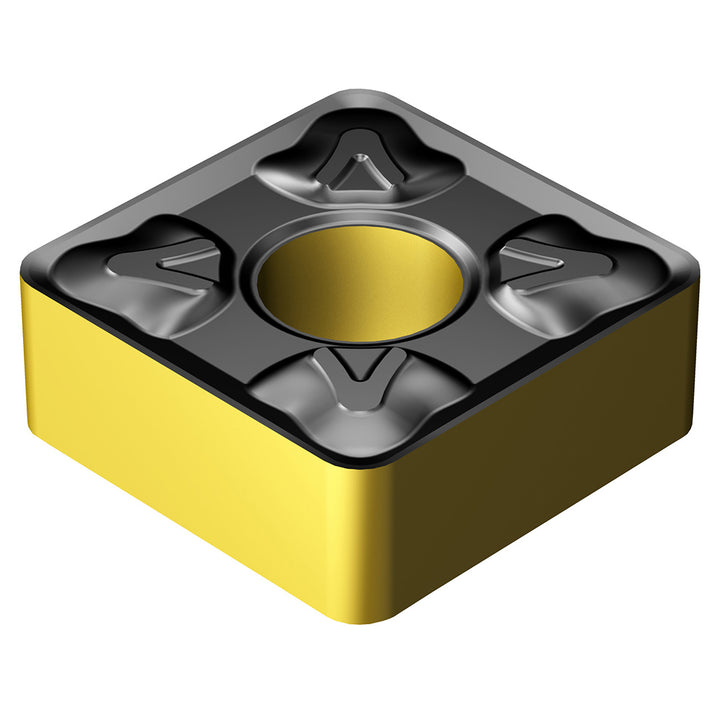

The Sandvik Coromant 8019711 is a SNMG 12 04 12-XM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeSNMG433
Ansi size code433
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeS - Square
Insert size code433
Insert styleSNMG
Iso codeSNMG 12 04 12-XM 4425
Iso insert codeSNMG120412
Iso size code120412
Manufacturers catalog numberSNMG 12 04 12-XM 4425
Manufacturer grade4425
Primary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
