Sandvik Coromant
RCMT 16 06 M0 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 8020975
MFR# 8020975ISO/ANSI# RCMT1606M0Cat# RCMT 16 06 M0 4415Series RCMT
$36.33List $46.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
Grade4415
MaterialCarbide
CoatingTiCN
Description

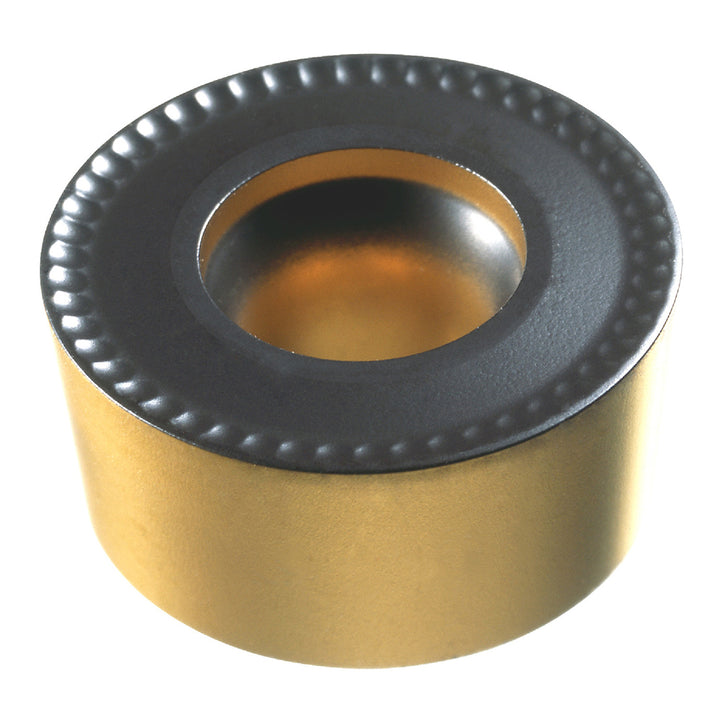

The Sandvik Coromant 8020975 is a RCMT 16 06 M0 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert codeRCMT1606M0
Ansi size code1606M0
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Inscribed circle0.6299
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeR - Round
Insert size code1606
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT 16 06 M0 4415
Iso insert codeRCMT1606M0
Iso size code1606M0
Manufacturers catalog numberRCMT 16 06 M0 4415
Manufacturer grade4415
Primary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
